Lighting plays a critical role in the performance of a vision measuring machine (VMM). The choice of illumination directly affects image contrast, edge detection accuracy, and measurement repeatability.
Among the most commonly used illumination types in modern optical vision measurement systems are blue LED lighting and white LED lighting. Each type offers distinct advantages depending on the material, surface finish, and measurement requirements.
Understanding the difference between blue light and white light illumination helps engineers optimize measurement accuracy and inspection efficiency in industrial metrology applications.

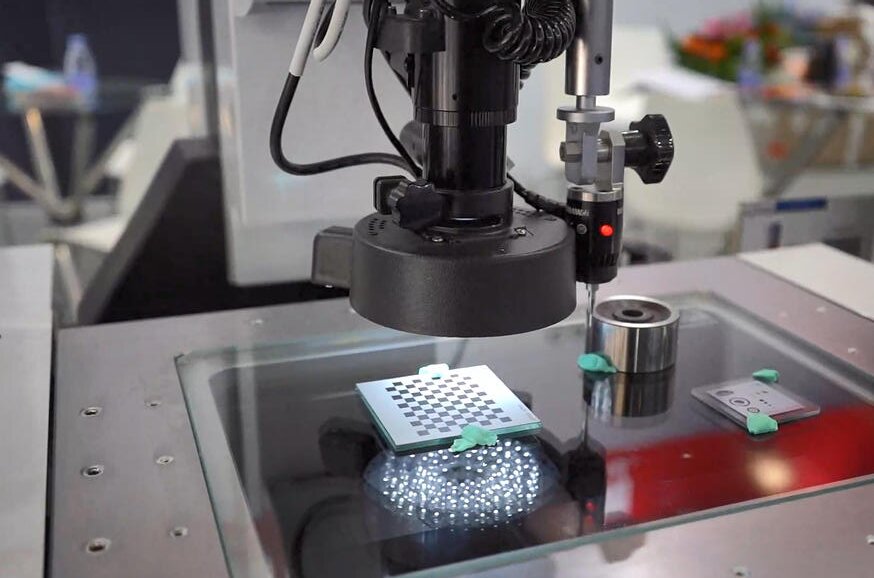

White light illumination is the most widely used lighting source in optical measurement systems and machine vision inspection. It provides balanced, full-spectrum lighting that works well for general-purpose measurement tasks.
White LED lighting offers several key benefits:
Provides uniform illumination for a wide range of materials
Suitable for general dimensional measurement
Works well with plastic, PCB, and matte surfaces
Offers natural color rendering for visual inspection
Easy to adjust intensity and illumination angles
Because of its versatility, white light is commonly used for:
Plastic parts inspection
Electronic components
PCB measurement
General mechanical parts
White light illumination is often combined with ring lights, coaxial lights, or backlights in vision measurement systems.

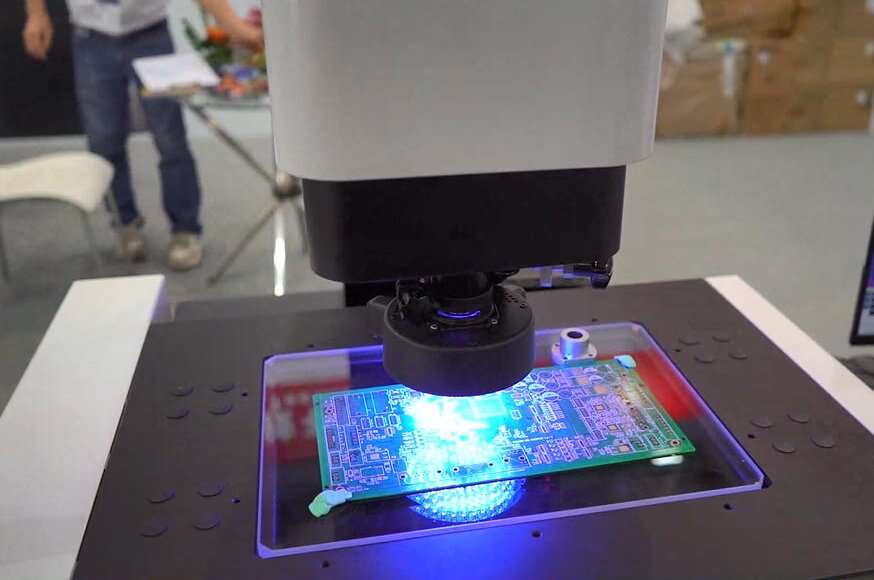

Blue light illumination uses shorter wavelengths compared to white light. This shorter wavelength produces higher image contrast and improves the detection of edges and fine features.
In high-precision vision measuring machines, blue LED lighting is often used to enhance measurement performance on challenging surfaces.
Blue light offers several technical advantages:
Higher contrast for metallic surfaces
Improved edge detection accuracy
Reduced optical diffraction
Better visibility for fine details and small features
Enhanced performance when measuring reflective materials
Blue light is particularly effective when measuring:
Precision machined metal parts
Mold components
Polished surfaces
Micro-mechanical components
Many advanced vision measuring machines integrate dual-color lighting systems to combine the advantages of both illumination types.
| Feature | Blue Light | White Light |
|---|---|---|
| Wavelength | Shorter wavelength | Full-spectrum |
| Image Contrast | Higher contrast for metals | Balanced contrast |
| Edge Detection | More precise for small edges | Good for general measurement |
| Surface Compatibility | Best for reflective surfaces | Best for general materials |
| Typical Applications | Precision metal inspection | General industrial inspection |
In practical measurement scenarios, selecting the right lighting type can significantly improve measurement stability and repeatability.
To maximize measurement performance across different materials, many modern vision measuring systems integrate dual-color ring lighting, typically combining blue and white LED illumination.
This multi-color lighting configuration allows operators to:
Select the optimal illumination based on material properties
Improve edge contrast for complex surfaces
Reduce measurement errors caused by reflections
Enhance image clarity for automated measurement
By dynamically adjusting the lighting mode, the system can achieve more reliable and accurate dimensional inspection.
Easson vision measuring machines are optional equipped with multi-zone dual-color LED ring lighting systems, combining both white and blue illumination to optimize measurement performance.
Key lighting features include:
Eight-zone independently controlled ring lighting
Dual-color LED system for different materials
Adjustable brightness and lighting angle
Optimized illumination for precision edge detection
This advanced lighting system enables the machine to deliver stable and repeatable measurement results across a wide range of industrial applications.
Both blue light and white light illumination play essential roles in vision measurement systems.
White light provides versatile lighting for general inspection tasks, while blue light enhances contrast and improves measurement accuracy on reflective or precision-machined surfaces.
By combining both technologies, modern vision measuring machines can achieve higher precision, improved edge detection, and more reliable measurement performance.
For manufacturers seeking high-precision optical inspection solutions, selecting a vision measuring system with advanced multi-color lighting technology is a key factor in ensuring accurate and efficient dimensional measurement.
The best lighting depends on the surface material and measurement requirements. White light is suitable for general inspection, while blue light improves contrast and edge detection for metallic or reflective surfaces.
Blue light has a shorter wavelength, which improves image contrast and allows the system to detect edges more accurately during precision measurements.
White light is typically used for general measurement applications, including plastic components, electronic parts, and matte surfaces.
Yes. Many modern systems use multi-color LED ring lighting, allowing operators to switch between blue and white illumination to optimize measurement accuracy.
