Laser measurement uses a laser beam to measure distance, position, thickness, and surface profiles with high precision, while image measurement (vision measurement) uses a camera and image processing algorithms to measure dimensions, shapes, colors, and patterns.
Laser measurement is an active technology—it emits its own light source and measures the reflection. Image measurement is a passive technology that relies on captured visual data. Laser sensors specialize in precise distance and thickness measurements with sampling rates up to 100 kHz. Vision sensors excel at multi‑feature inspections, object recognition, and quality control across a wide field of view.
Laser measurement systems work by emitting a laser beam onto an object’s surface and measuring the reflected or scattered light to calculate distance, displacement, thickness, or 3D profile with sub‑micron accuracy. This is commonly based on triangulation or time‑of‑flight principles. Laser displacement measurement, for example, can achieve precision as fine as 0.1 microns, making it suitable for semiconductor and precision manufacturing applications. Laser sensors are also exceptionally fast, with sampling frequencies exceeding 100 kHz, enabling real‑time dynamic measurements like vibration analysis.
Image measurement systems use one or more cameras to capture visual data of an object, then apply image processing algorithms—often enhanced by AI—to measure dimensions, identify defects, verify assembly, and read codes. Vision systems excel at parallel inspection, allowing hundreds of measurements to be taken from a single image in seconds. Advanced systems use telecentric optics and high‑resolution sensors to achieve repeatable accuracy down to 3 microns per measurement. Vision sensors are highly flexible; they can be reconfigured for different inspection tasks without hardware changes, from presence/absence checking to precise edge detection and pattern matching.
Laser measurement delivers sub‑micron precision, ultra‑high sampling speeds (100 kHz+), non‑contact operation, and excellent performance for single‑parameter measurements like thickness, height, flatness, and vibration. These characteristics make laser technology the preferred choice for applications where measurement accuracy is the single most critical requirement. Laser sensors are unaffected by surface color or contrast variations, and they thrive in dynamic environments where objects move at high speeds. They are also ideal for measuring features that are not optically accessible, such as depth profiles inside cavities or gaps.
Image measurement offers high flexibility, parallel multi‑feature inspection, intuitive operation, and the ability to measure complex 2D and 3D geometries in a single capture. Vision sensors can simultaneously measure dozens of dimensions (diameters, distances, angles, radii) while also checking for surface defects, verifying part presence, and reading barcodes or text—all in one image. Modern vision systems often feature AI‑powered auto‑recognition, automatically identifying part features like edges, circles, and holes without complex programming. Vision measurement also provides rich visual documentation, making it easier to audit and trace quality records.
Laser measurement typically achieves higher absolute accuracy for distance and thickness measurements (sub‑micron to micron level), while image measurement provides excellent 2D dimensional accuracy (typically 3–10 microns) depending on camera resolution, lens quality, and lighting conditions. This difference stems from their fundamental operating principles. Laser displacement sensors can resolve down to 0.1 microns based on triangulation, whereas vision measurement accuracy is tied to pixel resolution and optical magnification. However, for most industrial quality control applications—where tolerances are in the 10–50 micron range—both technologies perform well, and the trade‑off becomes speed, flexibility, and ease of use rather than raw accuracy.
Laser measurement is faster for single‑point or single‑line measurements (sampling rates up to 100 kHz), while image measurement is faster for measuring many features on a single part because a single camera capture can extract hundreds of dimensions in milliseconds. For applications requiring high‑speed online inspection of every part on a production line, laser sensors excel at measuring height, thickness, or distance as parts fly by at high speed. For applications that require complete dimensional verification of each part—checking 20 different dimensions across the entire geometry—vision measurement is significantly faster because it eliminates the need to reposition the sensor for each measurement.
Choose laser measurement when your application requires sub‑micron precision, thickness or flatness measurement, dynamic/vibration measurement, or when measuring on highly reflective, low‑contrast, or transparent surfaces that challenge vision systems.
| Application Type | Laser Recommended When |
|---|---|
| Thickness measurement | Non‑contact thickness of films, wafers, glass, metal sheets |
| Height/step measurement | Micro‑level height differences on PCB components, connectors |
| Flatness/parallelism | Precision alignment of machine bases, bearing surfaces |
| Vibration/displacement | Real‑time dynamic monitoring of rotating or oscillating parts |
| High‑speed production | Measuring moving parts at 100+ units per minute |
Choose image measurement when you need to measure multiple dimensions on a single part, perform defect detection alongside dimensional inspection, require visual documentation, or when ease of use and operator‑independent results are priorities.
| Application Type | Image Measurement Recommended When |
|---|---|
| Multi‑feature inspection | Measuring diameter, length, angle, radius, and position in one capture |
| Defect detection | Scratches, dents, burrs, missing components, surface flaws |
| Contour/profile measurement | 2D contours, edge profiles, part outlines |
| Assembly verification | Presence/absence of screws, labels, connectors, orientation |
| Code reading & text verification | OCR, 1D/2D barcodes, date codes, lot numbers |

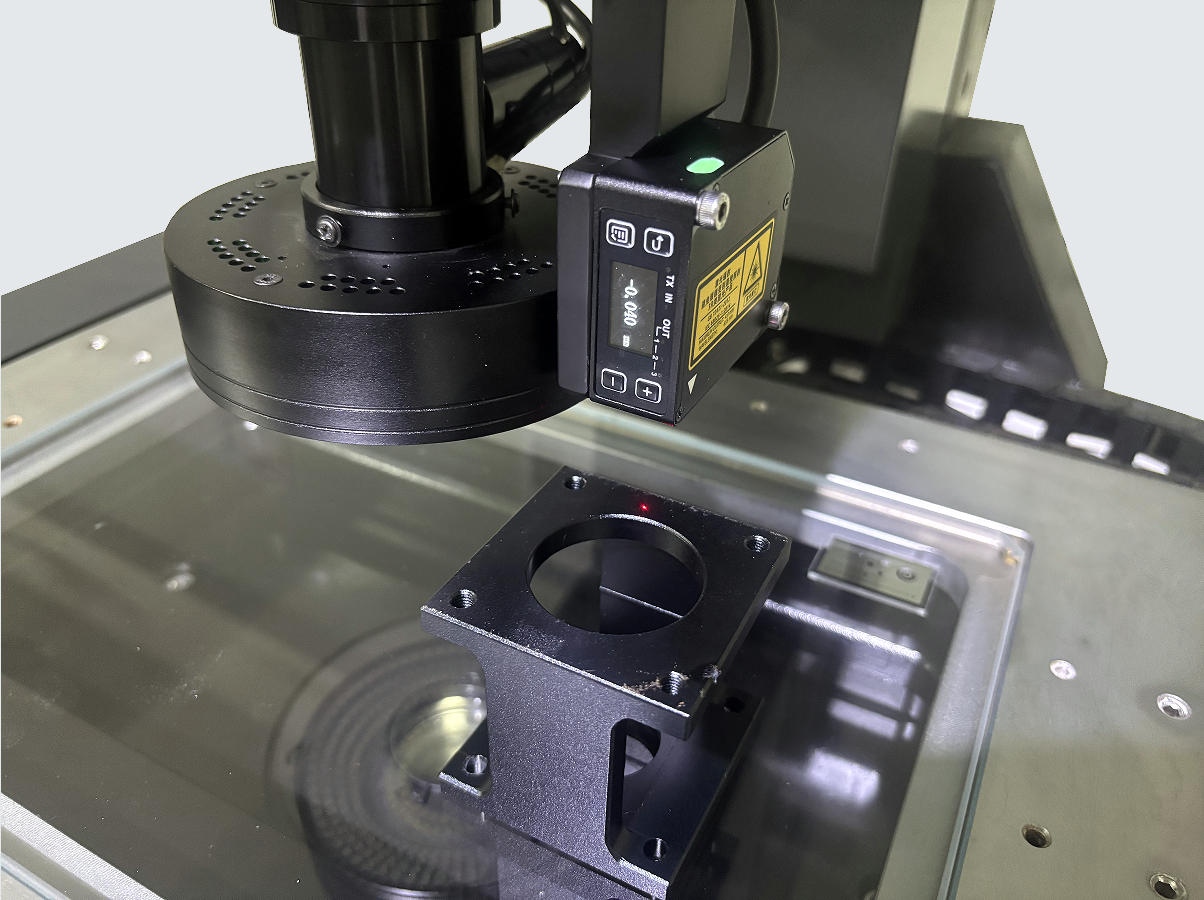

Yes—integrating laser and image measurement in a single system is increasingly common and often delivers the optimal solution. Many advanced measurement platforms combine a high‑resolution camera for 2D and multi‑feature inspection with an integrated laser head for precise height and thickness measurement. This hybrid approach allows users to measure in‑plane dimensions (diameter, length, position) with the vision system while simultaneously capturing out‑of‑plane dimensions (height, flatness, coplanarity) with the laser—all on the same fixture, with no repositioning of the part.
Select the technology that best matches your critical measurement parameters: accuracy requirement, number of features per part, part throughput, and environmental conditions. Here is a simple decision framework you can follow:
Step 1: Identify your single most critical measurement requirement. If it is sub‑micron height/thickness accuracy → Laser. If it is verifying 10+ dimensions or features per part → Image.
Step 2: Evaluate your part throughput. For high‑speed inline measurement (100+ parts per minute) → Laser for simple parameters; Image for complete verification of each part at moderate speed.
Step 3: Consider your surface and environment. Reflective, transparent, or low‑contrast parts → Laser typically performs better. Clean, well‑lit environments with matte or textured surfaces → both work; Image offers more information per capture.
Step 4: Factor in ease of use and programming. New operators, frequent part changes, or high‑mix low‑volume production → Image offers intuitive setup and auto‑recognition. Fixed, high‑volume, same‑part production → Laser provides maximum speed and precision.
Step 5: Ask yourself: Do I need a record of what was measured? If visual documentation and traceability images are required → Image is mandatory. If only numeric data is needed → Laser is sufficient.
When in doubt, remember: Laser for precision depth; Image for complete geometry. But the best answer for many applications today is to choose a system that offers both.
Entry‑level image measurement systems are often more accessible in initial hardware cost, while high‑precision laser systems require larger capital investment—but total cost of ownership must include software, integration, and application complexity. For simple single‑parameter measurements (height, thickness), a dedicated laser sensor is highly cost‑effective. For complex inspection requiring multiple sensors, custom fixturing, and specialized software, an integrated vision system may offer better ROI by handling many inspection tasks with one piece of hardware. The most accurate way to compare cost is to evaluate the full system cost required to meet your specific measurement specifications, including programming, training, maintenance, and future flexibility.
Semiconductor manufacturing, precision machining, automotive assembly (gap/flush measurement), flat panel display production, medical device manufacturing (thin‑wall tubing, stents), electronics assembly (PCB thickness, connector height), and packaging (film thickness).
Automotive (full component inspection), electronics and PCB assembly, pharmaceutical (blister pack inspection, label verification), food and beverage (fill level, cap presence), aerospace (turbine blade contour), consumer goods, and medical device manufacturing (syringe dimensions, catheter features).
